Description

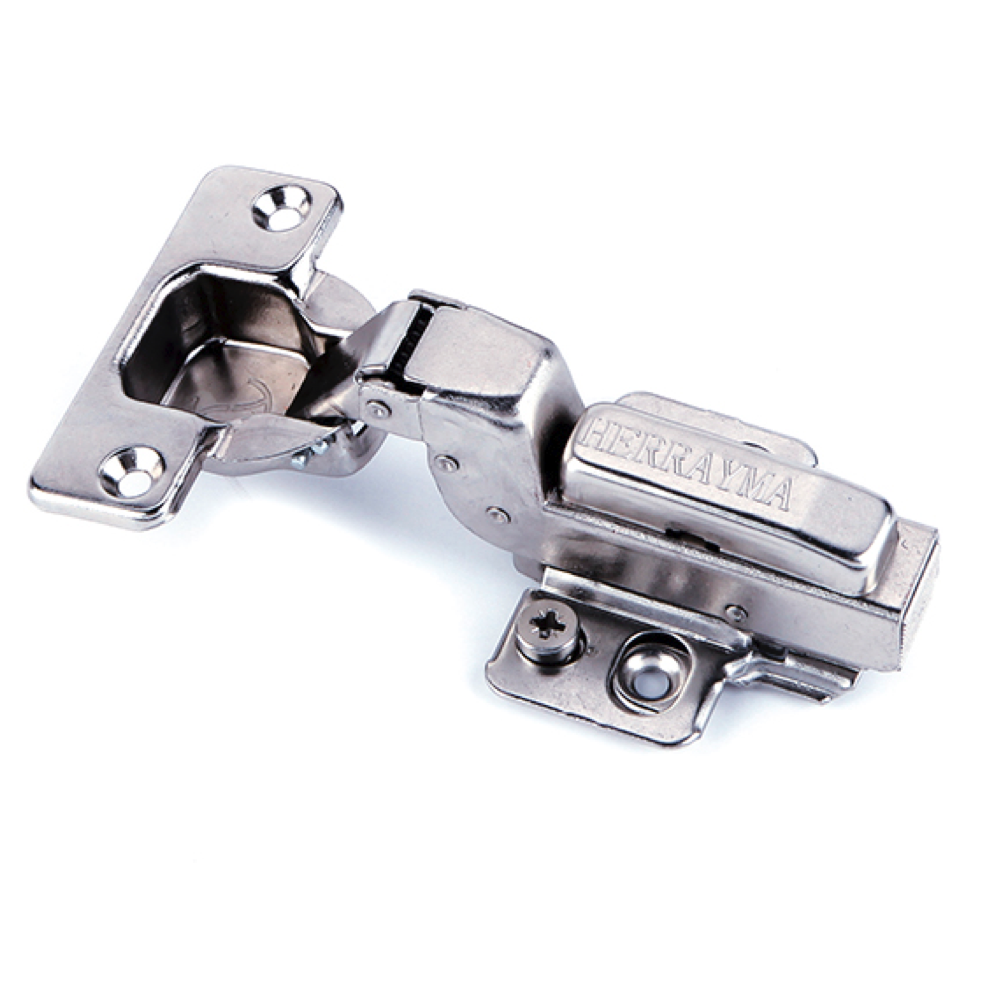

- Full overlay cup hinge with a 35mm diameter and soft-close piston.
- Includes a 3D base that allows you to adjust depth, height, and width.

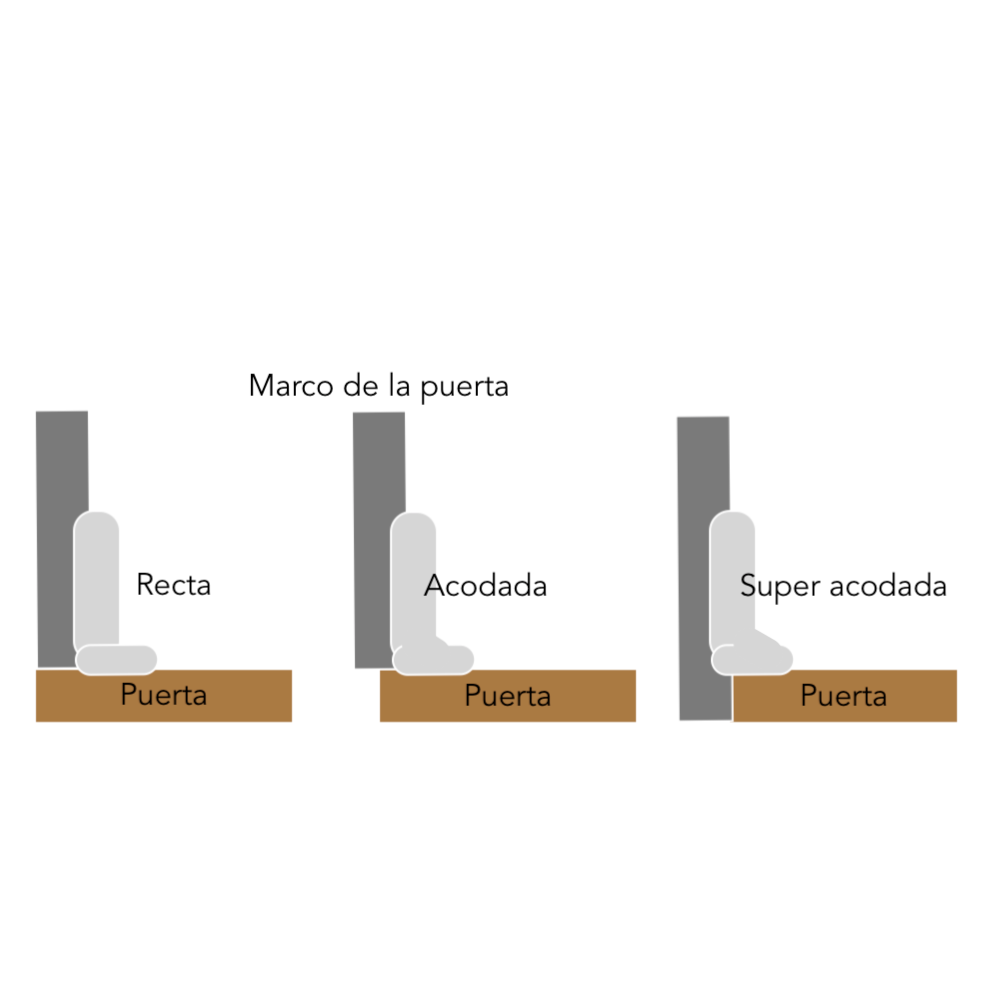

- Features an opening angle of up to 110º, and as a full overlay hinge, it exposes the entire edge of the cabinet when the door is closed (as seen in the image).
- Installation is simple: Use a router to drill a 35mm hole in the door, then screw the hinge to the cabinet/wardrobe and to the door itself by fitting the cup into the hole.
Technical Data Sheet
| Hinge type | Full overlay |
| Opening angle | 110º |
| Cup diameter | 35mm |
| Main material | Steel |
| Finish | Nickel-plated |
| Closing | With piston (Soft-close) |
| Base type | 3D adjustment |
| Includes wall plugs | No |
